Máy in mã vạch truyền nhiệt Xprinter XP-TT424B/TT434B là giải pháp hoàn hảo cho nhu cầu in nhãn trong nhiều lĩnh vực khác nhau như bán lẻ, kho vận, logistics và sản xuất. Sản phẩm kết hợp hiệu suất cao, thiết kế nhỏ gọn và tính đa dụng, mang đến sự tiện lợi và tiết kiệm cho người sử dụng.





| Printer Specifications | XP-TT424B | XP-TT434B |
| Resolution | 203 DPI | 300 DPI |

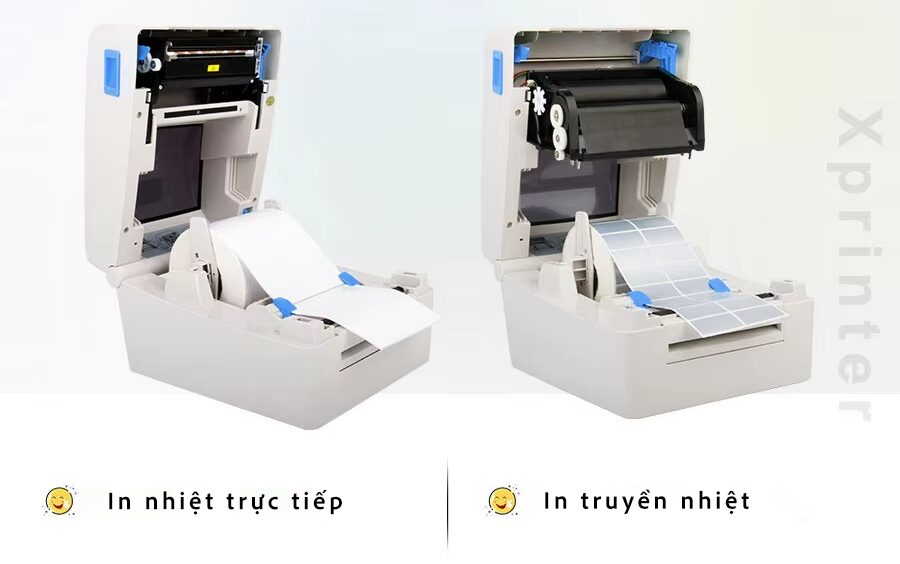

| Print Method | Thermal Transfer / Direct Thermal | |
| Memory | 8 MB RAM / 8 MB Flash | |

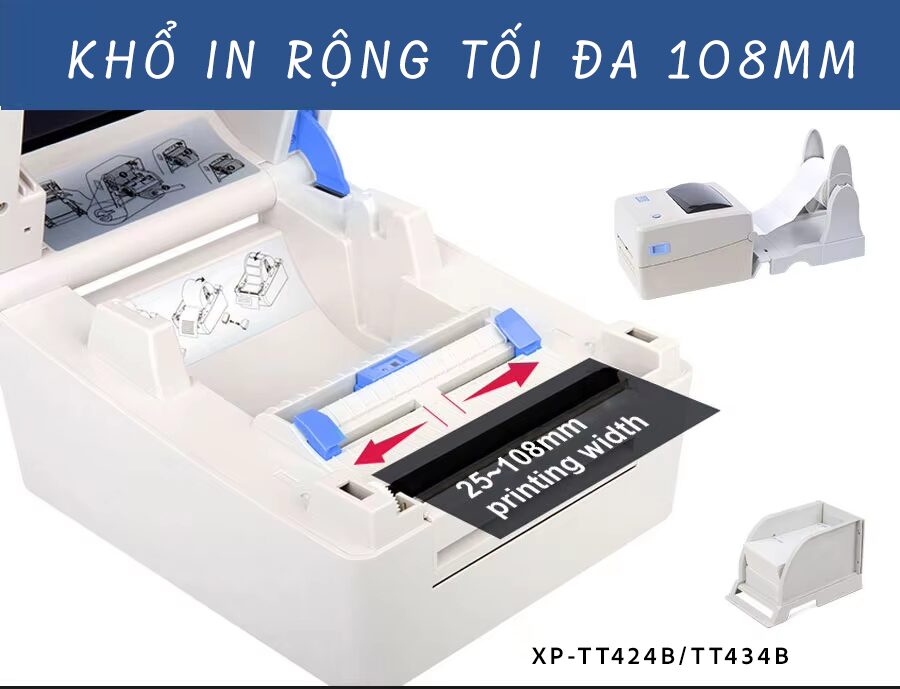

| Max.Print Width | 4.09 in./ 104 mm | 4.25 in./ 108 mm |
| Max.Print Speed | Up to 5 ips (127 mm/s) | Up to 4 ips (102 mm/s) |
| Media Sensors | Movable Black Mark Sensor / Fixed Gap Sensor | |
| Emulation | TSPL, ZPL, EPL, DPL | |
| Interface | USB, USB+Ethernet, Optional Wireless Connectivity:Bluetooth / Wi-Fi | |
| Others | Optional RTC, Optional SD Card Slot | |
| Media and Ribbon Characteristics | ||
| Media Length | 0.39 in.~70 in.(10 mm ~ 1778 mm) | 0.39 in. – 35 in. (10 mm – 889 mm) |
| Media Width | 1 in. – 4.5 in. (25.4 mm – 115 mm) | |
| Media Roll Size | 5 in. / 127 mm Outer Diameter, Core Inner Diameter: 1 in. (25.4 mm) | |
| Media Thickness | 0.0023 in. (0.06 mm) Min.; 0.01 in. (0.254 mm) Max. | |
| Media Types | Continuous, Gap, Black mark, Fan~fold, Perforated Media | |
| Ribbon Outside Diameter | 1.42 in./36 mm | |
| Max. Ribbon Length | 90 Meters (295 ft.) | |
| Ribbon Width | 1 in. ~ 4.3 in. (25.4 mm ~ 110 mm) | |
| Ribbon Core I.D. | 0.5 in. / 12.7 mm | |
| Environment Condition | ||
| Operating Temp. | 5 ~ 40℃(41~104℉) | |
| Storage Temp. | -40 ~ 60℃(-40~140℉) | |
| Operating Humidity | 25 ~ 85% Non-Condensing | |
| Storage Humidity | 10 ~ 90% Non-Condensing | |
| Fonts/Graphics/Symbologies | ||
| 1D Bar Codes | Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar,Interleaved 2 of 5, EAN-8,EAN-13,EAN-128, UPC-A, UPC-E,EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11 | |
| 2D Bar Codes | PDF-417, Maxicode, DataMatrix, QR code, Aztec | |
| Fonts and Graphics | Font 0 ~ Font 8 | |
| Software | ||
| Driver | Windows /Linux /Mac / Android / Chrome OS | |
| SDK | Windows/Linux / Android /iOS | |
| Software | Bartender UltraLite / Mobile Label Design App | |
| Accessories | ||
| Standard Accessories | Power Adapter, Power Cord, USB Cable, User Manual, CD , Label spindle, Fixing tab, Fixing tab, Ribbon spindle, Ribbon for test, Ribbon paper core, label roll for test | |
| Factory Installed Options | Bluetooth Module, Wi-Fi Module | |
| User Options | 8″ External Paper Roll Holder | |
| Product Warranty | ||
| Printhead life | The earlier of 30 km usage or 1 year | |
| Platen roller life | The earlier of 30 km usage or 1 year | |
| Printer Warranty | 1 Year | |
| Physical Characteristics | ||
| Dimension | 246 mm x 199 mm x 168 mm (D x W x H) | |
| Weight | 1.62 Kg | |
